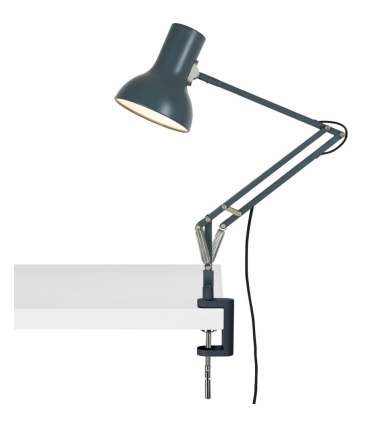

Anglepoise Type 75 Mini Lamp with Desk Clamp

Other colour options are available.

With its clean lines, flowing movement and flawless balance, Sir Kenneth Grange’s Type 75™ Mini  reinterprets the original Anglepoise® design for the 21st Century, but on a smaller scale. The pared-back aesthetic means that this range is at home anywhere, from hotel to home office; a fact that has helped to make the Type 75™ mini one of our bestselling collections across the globe.

The smoothly-shaped shade, with its attractive stylised vents, can be moved into multiple positions, while the Anglepoise® unique constant tension spring mechanism guarantees that it will be a pleasure to use.

This clamp is designed to clamp to any horizontal surface of between 7 and 60mm thick.

Type 75 Mini Desk Lamp - Dimensions

Product Information

Model: Type 75 Mini
Lamp Type: Desk Lamp
Designer : Sir Kenneth Grange

Dimensions: H42 x W36 x D17cm (lamp) H11cm x W6cm x D3.7cm (clamp)
Materials: Aluminium, Cast Iron, Plated Steel fittings
Cleaning: Clean with a soft, dry cloth
Weight: 2.6kg

Switch Type: Integrated shade switch
Cable Length / Type: 1.8m – Black PVC

Bulb included: Yes
Bulb type & rating: 1x E27 LED – 6W
Bulb output: 470 Lumens / 2700 Kelvin
Bulb lifetime: 15,000 Hours use

Bulb replaceable: Yes
Max Bulb Rating: 10W LED E27
Dimmable: Yes - Additional electrical hardware required

Country of Origin: China
Energy Efficiency: F (using bulb supplied)


Downloads - Instructions

UK Specification PDF - download here
EU Specification PDF - download here
cUL Specification PDF - download here

Downloads - Desk Clamp Instructions

Desk Clamp Installation PDF - download here

Downloads - Technical

Data sheet UK Specification PDF - download here
Data sheet EU Specification PDF - download here
Data sheet cUL Specification PDF - download here

Complete Technical Pack - download here
(may contain 3D files, Data sheets, photometric files, energy labelling)

Downloads - Images

Cutout Images Pack - download here


To purchase a Type 75 Mini Desk Lamp or to check alternative colour options - click here

Or, if you already have a Type 75 Mini Desk Lamp and would like to purchase a clamp, please click here.
