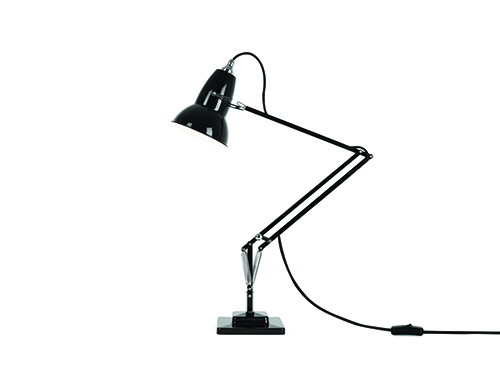

Anglepoise Original 1227 Desk Lamp

Other colour options are available.


Launched in 1935 and generally considered the archetypal Anglepoise, the Original 1227™ pioneered our unique constant spring technology to deliver ultimate flexibility and perfect balance.
Today this timeless, classic design enjoys iconic design status.

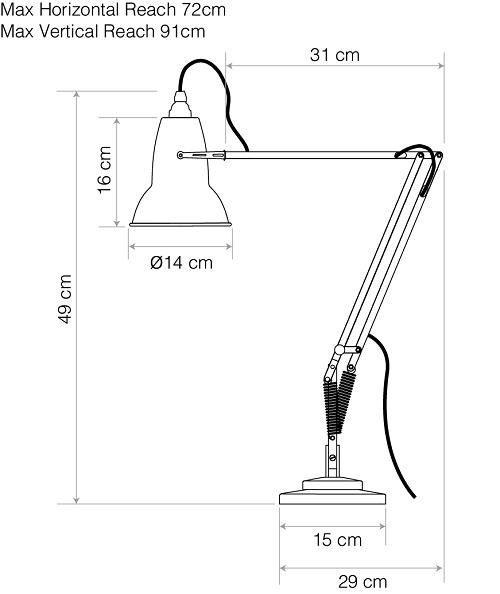

Original 1227 Desk Lamp - Dimensions

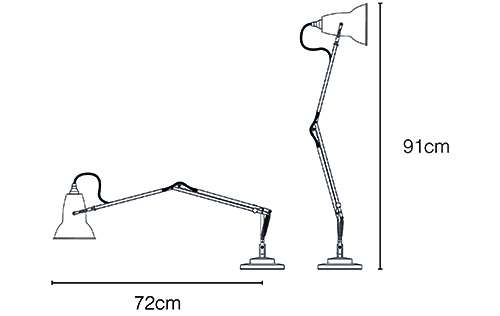

Original 1227 Desk Lamp - Maximum Reach


Product Information

Model: Original 1227
Lamp Type: Desk Lamp
Inventor : George Carwardine

Dimensions: H49 x W44 x D15cm
Materials: Aluminium, Steel, Cast Iron, Chrome plated fittings
Cleaning: Clean with a soft, dry cloth
Weight: 3.15kg

Switch Type: Inline Cable Switch
Cable Length / Type: 2.0m – Braided Cable

Bulb included: Yes
Bulb type & rating: 1x E27 LED – 6W
Bulb output: 470 Lumens / 2700 Kelvin
Bulb lifetime: 15,000 Hours use

Bulb replaceable: Yes
Max Bulb Rating: 10W LED ES
Dimmable: Yes - Additional electrical hardware required

Country of Origin: China
Energy Efficiency: F (using bulb supplied)


Downloads - Instructions

UK Specification PDF - download here
EU Specification PDF - download here
US Specification PDF - download here

Downloads - Technical

Data sheet UK Specification PDF - download here
Data sheet EU Specification PDF - download here
Data sheet US Specification PDF - download here

Complete Technical Pack - download here
(Contains 3D files, Data sheets, Photometric files, Energy labelling)

Downloads - Images

Cutout Images Pack - download here

Coral Red Cutout Images Pack - download here

Lifestyle Images Pack - download here

Coral Red Lifestyle Images Pack - download here

To purchase an Original 1227 Desk Lamp or to check alternative colour options - click here
