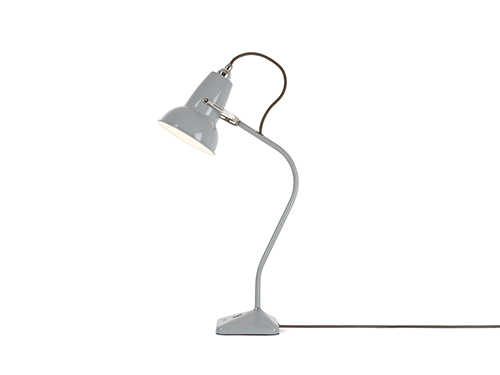

Anglepoise Original 1227 Mini Table Lamp

Other colour options are available.

A scaled down version of the iconic Original 1227, the Original 1227 Mini Table Lamp combines Anglepoise heritage and iconic table lamp form, with a pyramid-shaped base and practical, integral switch.

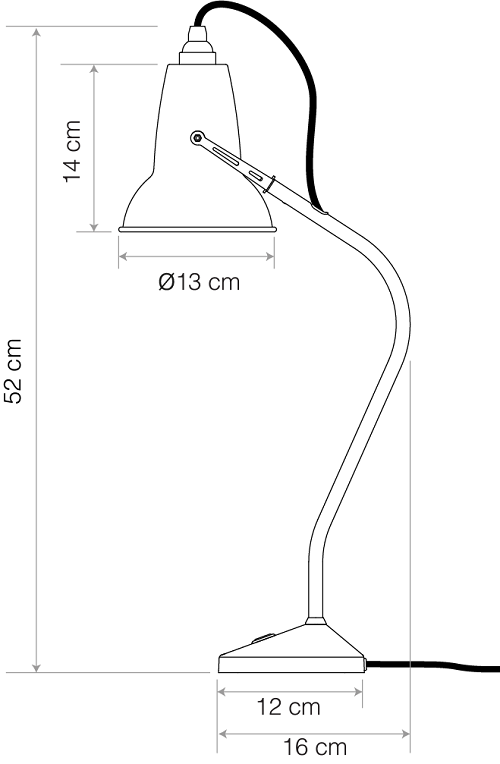

Original 1227 Mini Table Lamp - Dimensions

Product Information

Model: Original 1227 Mini
Lamp Type: Table Lamp
Inventor : George Carwardine

Dimensions: H52 x W12 x D26cm
Materials: Steel, Cast Iron, Chrome plated fittings
Cleaning: Clean with a soft, dry cloth
Weight: 2.4Kg

Switch Type: Base mounted push switch
Cable Length / Type: 1.8m – Braided Cable

Bulb included: Yes
Bulb type & rating: 1x E27 LED – 6W
Bulb output: 470 Lumens / 2700 Kelvin
Bulb lifetime: 15,000 Hours use

Bulb replaceable: Yes
Max Bulb Rating: 10W LED E27
Dimmable: Yes - Additional electrical hardware required

Country of Origin: China
Energy Efficiency: F (using bulb supplied)


Downloads - Instructions

UK Specification PDF - download here
EU Specification PDF - download here
US Specification PDF - download here

Downloads - Technical

Data sheet UK Specification PDF - download here
Data sheet EU Specification PDF - download here
Data sheet cUL Specification PDF - download here

Complete Technical Pack - download here
(Contains 3D files, Data sheets, Photometric files, Energy labelling)

Downloads - Images

Cutout Images Pack - download here

Lifestyle Images Pack - download here


To purchase an Original 1227 Mini Table Lamp or to check alternative colour options - click here
