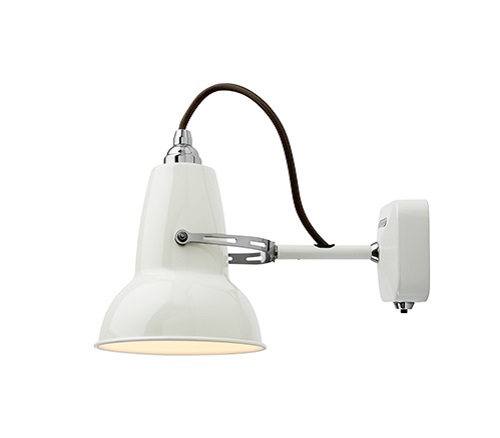

Anglepoise Original 1227 Mini Wall Light

Other colour options are available.

The Original Mini 1227™ Wall Light may be small, but it is effortlessly functional and perfectly formed.
Stand out features include a rotating steel shade, chrome fittings, and a square profiled die-cast aluminium
wall sconce, complete with an integral switch.

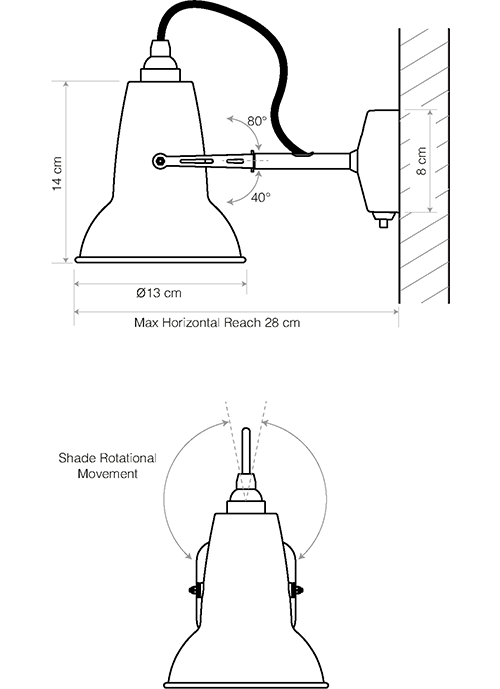

Original 1227 Mini Wall Light - Dimensions

Product Information

Model: Original 1227 Mini
Lamp Type: Wall Light
Inventor : George Carwardine

Dimensions: H18 x W13 x D28cm

Wall Plate Diameter (US ONLY): 3 inches

Junction Box Mounting Kit (US ONLY): Depth 0.26 inches, diameter 5.8 inches

Materials: Steel, Aluminium, Chrome plated fittings
Cleaning: Clean with a soft, dry cloth
Weight: 0.55kg

Switch Type: Push switch on Wall Sconce

Bulb included: No
Bulb type: 1x E14 SES
Bulb replaceable: Yes
Max Bulb Rating: 15W E14 SES
Dimmable: Yes - Additional electrical hardware required

Country of Origin: China
Energy Efficiency: Rating depends on Bulb fitted


Downloads - Instructions

UK Specification PDF - download here
EU Specification PDF - download here

Downloads - Technical

Data sheet UK Specification PDF - download here
Data sheet EU Specification PDF - download here

Complete Technical Pack - download here
(Contains 3D files, Data sheets, Photometric files, Energy labelling)

Downloads - Images

Cutout Images Pack - download here

Lifestyle Images Pack - download here

To purchase an Original 1227 Mini Wall Light or to check alternative colour options - click here
