Other colour options are available.
This compact, cast iron Desk Clamp has been designed to fix any light in the 1227™ and 1227™ Mini collections to a wide range of horizontal surfaces, including desks and shelves. The addition of a neat cable clamp means that you can secure the inline switch exactly where it is needed most.
This clamp is designed to clamp to any horizontal surface of between 1 and 60mm thick.

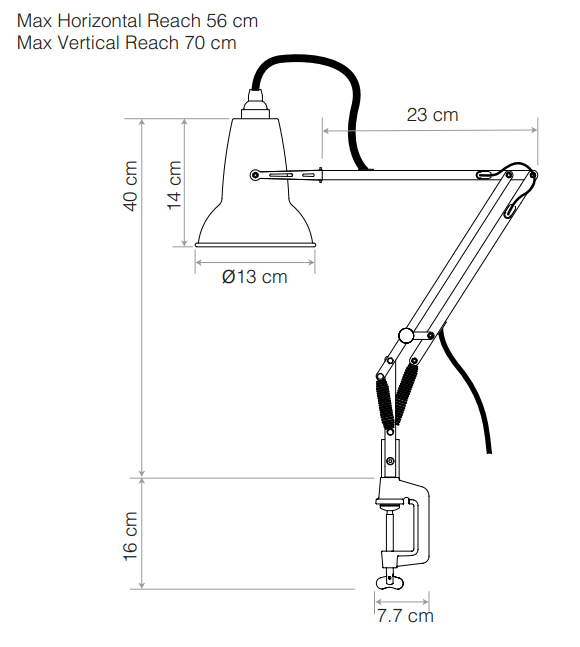

Original 1227 Mini Lamp with Desk Clamp - Dimensions
Product Information
Model: Original 1227
Lamp Type: Desk Clamp Mounted Lamp
Inventor : George Carwardine
Dimensions: H49.5 x W44 x D14cm
Materials: Aluminium, Steel, Cast Iron, Chrome plated fittings
Cleaning: Clean with a soft, dry cloth
Weight: 1.5kg
Switch Type: Inline Cable Switch
Cable Length / Type: 2.0m – Braided Cable
Bulb included: Yes
Bulb type & rating: 1x E27 LED – 5.5W
Bulb output: 600 Lumens / 2700 Kelvin
Bulb lifetime: 15,000 Hours use
Bulb replaceable: Yes
Max Bulb Rating: 10W LED E27
Dimmable: Yes - Additional electrical hardware required
Country of Origin: China
Energy Efficiency: F (using bulb supplied)
Downloads - Lamp Instructions
UK Specification PDF - download here
EU Specification PDF - download here
US Specification PDF - download here
Downloads - Desk Clamp Instructions
Desk Insert Installation PDF - download here
Downloads - Technical
Data sheet UK Specification PDF - download here
Data sheet EU Specification PDF - download here
Data sheet cUL Specification PDF - download here
Complete Technical Pack - download here
(may contain 3D files, Data sheets, photometric files, energy labelling)
Downloads - Images
Cutout Images Pack - download here
To purchase an Original 1227 Mini Lamp with Desk Clamp or to check alternative colour options - click here
To purchase the clamp, please click here
