Anglepoise Type 80 W1 Wall Light

Other colour options are available.

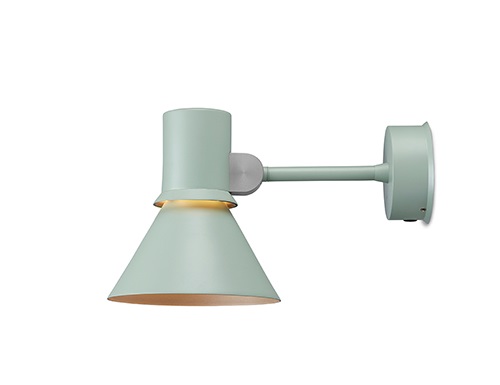

The Type 80™ W1 Wall Light has a striking, graphic profile and features an attractive ‘halo’ light-escape in the shade.
Every detail has been carefully considered and precision engineered to deliver streamlined style and ease of use, including a clean, contemporary wall sconce.

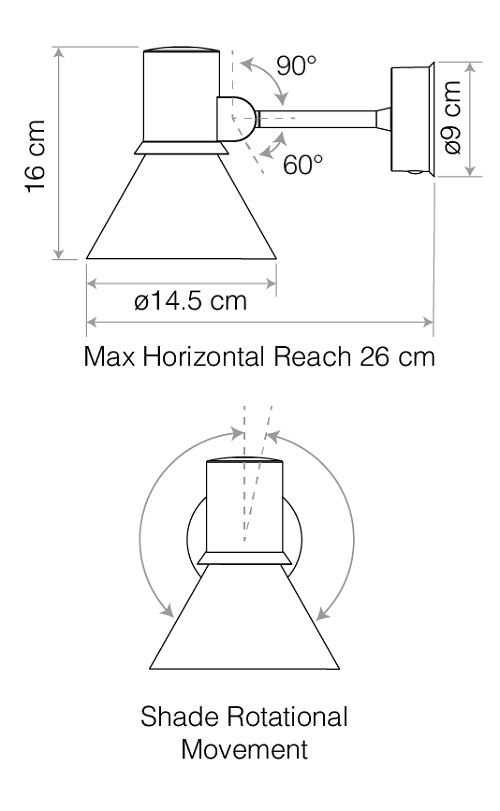

Type 80 W1 Wall Light - Dimensions

Product Information

Model: Type 80
Lamp Type: W1 Wall Light
Designer : Sir Kenneth Grange

Dimensions: H16 x W14.5 x D26cm

Wall Plate Diameter (US ONLY): 3 inches

Junction Box Mounting Kit (US ONLY): Depth 0.26 inches, diameter 5.8 inches

Materials: Aluminium, Steel, plated fittings
Cleaning: Clean with a soft, dry cloth
Weight: 0.45kg

Switch Type: Integrated shade switch

Bulb included: Yes
Bulb type & rating: 1x E27 LED – 6W
Bulb output: 470 Lumens / 2700 Kelvin
Bulb lifetime: 15,000 Hours use

Bulb replaceable: Yes
Max Bulb Rating: 10W E27 ES
Dimmable: Yes - Additional electrical hardware required

Country of Origin: China
Energy Efficiency: F (using bulb supplied)


Downloads - Instructions

UK Specification PDF - download here
EU Specification PDF - download here
US Specification PDF - download here

Downloads - Technical

Data sheet UK Specification PDF - download here
Data sheet EU Specification PDF - download here
Data sheet US Specification PDF - download here

Complete Technical Pack - download here
(Contains 3D files, Data sheets, Photometric files, Energy labelling)

Downloads - Images

Cutout Images Pack - download here

Lifestyle Images Pack - download here

To purchase a Type 80 W1 Wall Light or to check alternative colour options - click here
