Other colour options are available.

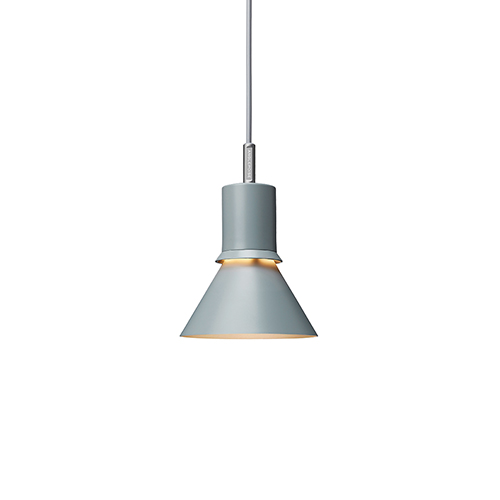

The Type 80™ pendant has a striking, graphic profile and features an attractive ‘halo’ light-escape in the shade.
Every detail has been carefully considered and precision engineered to deliver streamlined style and ease of use, including a clean, contemporary ceiling rose.
Type 80 Pendant - Dimensions
Product Information
Model: Type 80
Lamp Type: Pendant
Designer : Sir Kenneth Grange
Dimensions: H27x W14.5 x D14.5cm
Wall Plate Diameter (US ONLY): 3.9 inches
Junction Box Mounting Kit (US ONLY): Depth 0.26 inches, diameter 5.8 inches
Materials: Aluminium, Steel, plated fittings
Cleaning: Clean with a soft, dry cloth
Weight: 0.5kg
Cable Length / Type: 1.5m – PVC Cable
Bulb included: Yes
Bulb type & rating: 1x E27 LED – 6W
Bulb output: 470 Lumens / 2700 Kelvin
Bulb lifetime: 15,000 Hours use
Bulb replaceable: Yes
Max Bulb Rating: 10W E27 ES
Dimmable: Yes - Additional electrical hardware required
Country of Origin: China
Energy Efficiency: F (using bulb supplied)
Downloads - Instructions
UK Specification PDF - download here
EU Specification PDF - download here
US Specification PDF - download here
Downloads - Technical
Data sheet UK Specification PDF - download here
Data sheet EU Specification PDF - download here
Data sheet US Specification PDF - download here
Complete Technical Pack - download here
(Contains 3D files, Data sheets, Photometric files, Energy labelling)
Downloads - Images
Cutout Images Pack - download here
Lifestyle Images Pack - download here
To purchase a Type 80 Pendant or to check alternative colour options - click here
