How to repair or find spares for my Anglepoise Apex 90 (1985 - 2003)

As part of our lifetime commitment to service and trying to look after as many of our Anglepoise Apex 90 products from the past as we can. Despite last making this product over 15 years ago, we are able to offer certain spares for personal use, in order to help you get your product back in working order again. Please note that nearly all of these spares will require rewiring the product in some way. This work must be completed by a qualified electrician or someone with electrical competence.

If you are looking for a replacement push button switch and lamp holder components, they can be purchased here

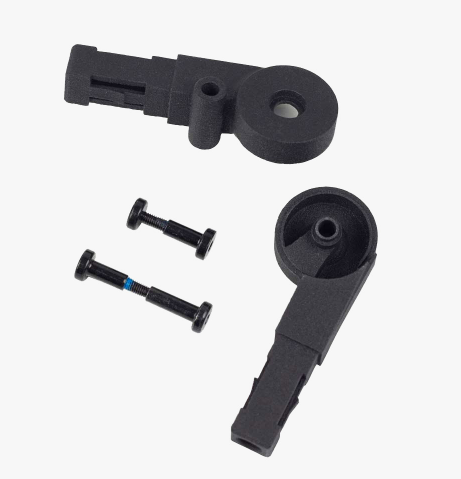

In the shade area we can offer a swivel joint (with a replacement swivel bracket. - This is the black part in the centre of the image:

We have reproduced this swivel joint component, and it will be available to purchase on our website here.

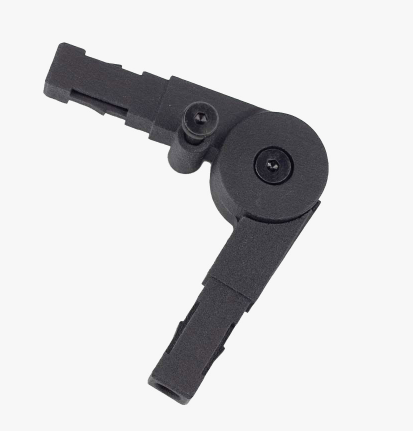

The next part of the Anglepoise Apex 90 we have been supplying is the centre joint shown in the image here:

You can purchase a replacement centre joint here.

The next main part of the lamp is around the lower fork and springs. The black components in black can be replaced.

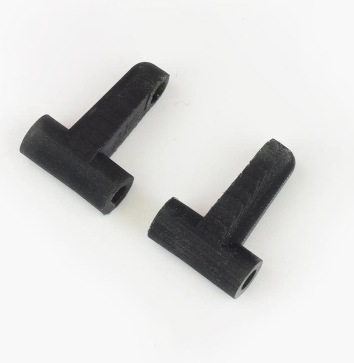

The first part here is the lower spring anchor that attaches to the lower arm. You can purchase a replacement here.

Then we have the linkage parts which attach the lower spring anchor above, connecting everything to the front arms. You purchase these on our website here. Please note, you will not need to use the pin that comes with them.

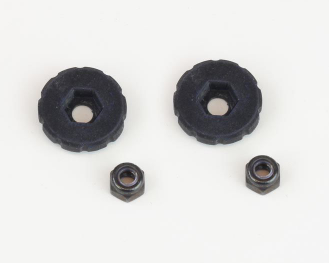

We have the adjuster wheels. These are unlikely to be damaged, but these can easily be replaced. You can purchase replacements on our website here.

We also offer spare springs for the Apex 90. We no longer have these in a black finish, but do have a plated zinc finish instead. These springs can also work for the Apex and the Apex PL that were also made at the time. These can be purchased here.

Hopefully, these parts will be useful in keeping your Anglepoise Apex 90 going for many more years and generations to come. Please, however, note that as nearly all of these spares will require rewiring the product in some way, this work must be completed by a qualified electrician or someone with electrical competence.
